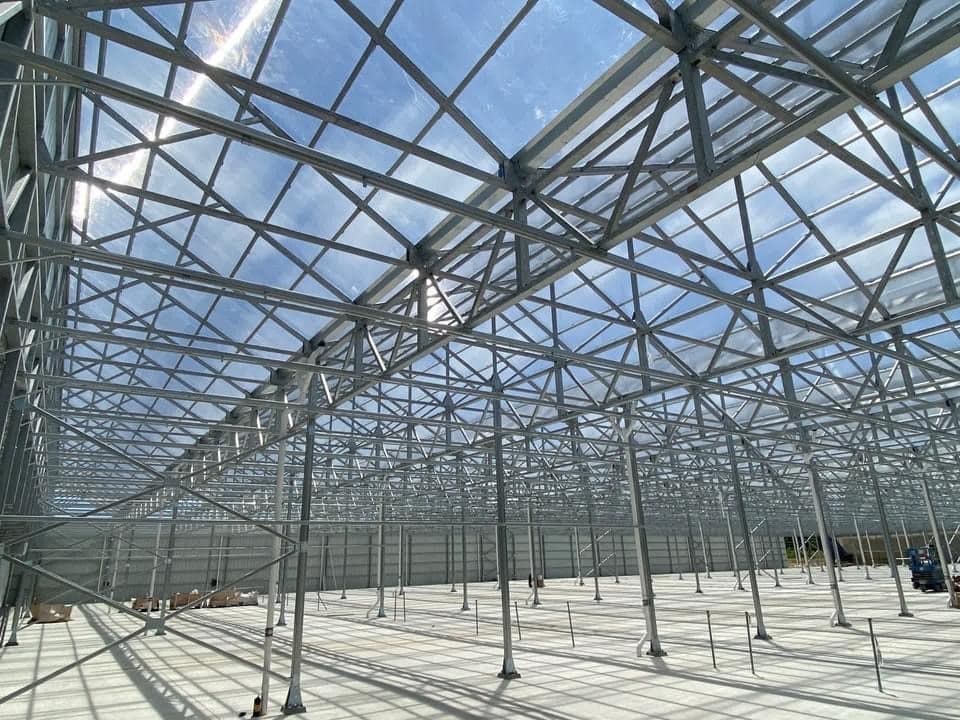

Alright, Anatomy of a Metal Building System. Don't let the plain title fool you. Here's the part that actually matters on the job: Read a metal building by its parts — rigid frames (skeleton), purlins and girts (secondary), bracing, and the metal skin — and remember the load path and that standing-seam roofs beat through-fastened on long-term weathertightness. Learn it well and you can walk a jobsite, read an erection drawing, and talk to a manufacturer like someone who belongs there.

Knowing the parts lets you read a metal building, follow the erection drawings, and catch problems before they become leaks or RFIs. Every piece has a name, a job, and a place in the load path.

Primary framing, the skeleton

• Rigid frames — the main moment frames: tapered columns and rafters welded from steel plate in the factory, connected at the knee and the ridge with bolted end plates. Most are clear-span; wide buildings may use modular frames with interior columns.
• Frame types — clear-span gable (the classic), single-slope, multi-span with interior columns, and lean-to frames attached to a main building.
• Endwall framing — a bearing endwall uses light columns and rafters because it only carries its own bay; an expandable endwall uses a full rigid frame so the building can grow later.
• Base condition — columns bear on base plates over anchor bolts cast into the foundation. Most are pinned bases that send vertical and horizontal reactions to the footing.

Secondary framing that ties it together

• Purlins — horizontal Z-shaped cold-formed members on the roof, usually 8 to 12 inches deep, that support the roof panels and carry load to the frames. Z-shapes nest, so they lap over the frames for continuity.
• Girts — horizontal members on the walls that support the wall panels; they can be bypass (running outside the column flange) or flush (framed between columns).
• Eave struts — the special member at the roof-to-wall junction that carries both roof and wall panels and helps close the bracing system.
• Flange braces — small angles from the purlins and girts to the frame's inside flange that keep the deep, slender frame from buckling sideways.

Bay spacing is typically 20 to 30 feet, with 25 feet common, optimized for steel economy of both the frames and the purlins.

Bracing that keeps it square

• Wind or X-bracing — cable, rod, or angle diagonals in the roof and walls that carry lateral load along the length of the building to the foundation. Usually placed in one or more bays, not every bay.
• Portal frames or wind columns — used where a braced bay would block a door opening.
• Diaphragm action — the roof and wall panels themselves stiffen the building once installed, which is exactly why a half-skinned building is vulnerable.

The skin, roof, and walls

• Wall panels — most are through-fastened ribbed panels, commonly 26 or 24 gauge, screwed to the girts with gasketed fasteners. Architectural panels, insulated metal panels, and masonry or glass veneers are common upgrades.
• Roof panels — the big decision is through-fastened (screw-down) versus standing-seam. A standing-seam roof rides on concealed clips that let the panel move with temperature and has no fasteners penetrating the weathering surface. Panels are typically 24 gauge with an aluminum-zinc coating, painted or bare.
• Insulation — faced fiberglass blanket draped over the purlins is the traditional approach; liner systems with banding and a second layer, rigid board, or insulated metal panels are used to meet today's energy codes.
• Trim, flashing, gutters, and downspouts — eave trim, rake trim, ridge cap, corner trim, base trim, and jamb and head trim at every opening.
• Accessories — overhead and sectional doors, personnel doors, windows, ridge vents, louvers, skylights and wall lights, and canopies.

Trace the load path

This is the sentence to memorize: panels to girts and purlins, to rigid frames, to base plates and anchor bolts, to the foundation. Gravity loads (dead, live, snow, collateral) ride that path downward. Lateral loads (wind, seismic) go from the panels into the girts and purlins, then into the frames in the short direction and into the bracing in the long direction, then down to the anchors. If you can trace it, you can see why a missing flange brace, a cut purlin, or a skipped bracing cable is a structural problem and not a cosmetic one.

Going Deeper (Intermediate)

Standing-seam versus through-fastened is a lifetime-cost decision. A through-fastened roof is cheaper and faster, but every screw is a gasketed hole, and after 10 to 20 years of thermal cycling those gaskets age, screws back out, and the roof leaks at the fasteners. A standing-seam roof costs more up front, but its clips and seams accommodate expansion, there are no exposed penetrations in the field of the roof, and manufacturers commonly offer weathertightness warranties when it is installed to their details. For a long roof with low slope, or any building where the owner plans to stay, standing-seam usually wins.

Advanced / Pro-Level

Long buildings need expansion joints — roughly every few hundred feet depending on climate and panel type — because the skin and the frame grow and shrink at different rates. Weathertightness lives in the details: the eave, the ridge, the rake, panel end laps, and every opening and penetration (where most leaks start). Pros also watch thermal bridging: a purlin touching a panel with only thin blanket in between bleeds heat, so modern assemblies use thermal blocks and continuous insulation to satisfy the energy code (IECC or ASHRAE 90.1, as adopted).

Big door openings need jamb columns and headers sized for wind, and roof openings for mechanical units need framed curbs that do not cut purlins without a transfer. Read the erection drawings by part mark — every frame, purlin, girt, clip, and bolt bundle is labeled, and the drawing tells you where it goes.

Practice Challenge

A client's 15-year-old metal roof leaks at the screws across the whole field of the roof. What roof type would have avoided this, and why? (Answer: a standing-seam roof. Its concealed clips allow thermal movement and there are no exposed fasteners penetrating the panels, so the aging-gasket screw-hole leaks typical of a through-fastened roof never develop. Through-fastened is cheaper up front, but those penetrations are the long-term leak risk.)

In Practice

An erector who knows the anatomy pulls the part marks, sets flange braces as the purlins go in, and installs every bracing cable before moving to the next bay. A crew that treats the drawing as a suggestion ends up with a racked building, a purlin cut for a duct, and a leak at the first rake trim — and every one of those is a callback.

Common Mistakes to Avoid

• Treating secondary framing as "just purlins" and skipping flange braces or bracing cables
• Cutting or notching a purlin or girt in the field for a duct or door without the engineer's approval
• Choosing a through-fastened roof on a long-term building purely on first cost
• Ignoring thermal bridging and under-insulating the roof relative to the energy code
• Assuming the wall panels can be removed or replaced freely — they are part of the lateral system

Takeaway: Read a metal building by its parts — rigid frames (skeleton), purlins and girts (secondary), bracing, and the metal skin — and remember the load path and that standing-seam roofs beat through-fastened on long-term weathertightness.
